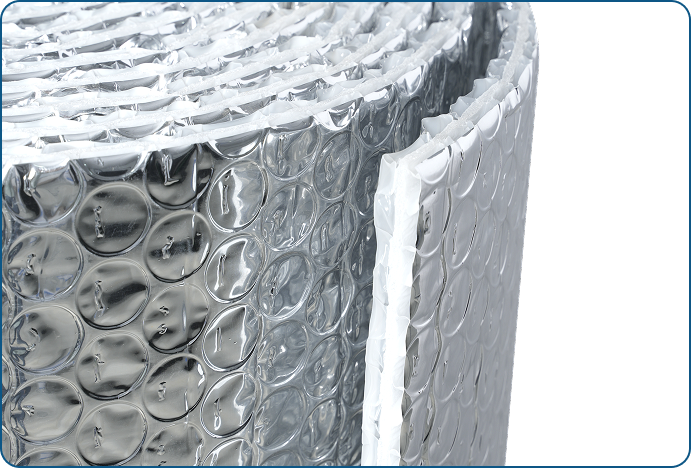

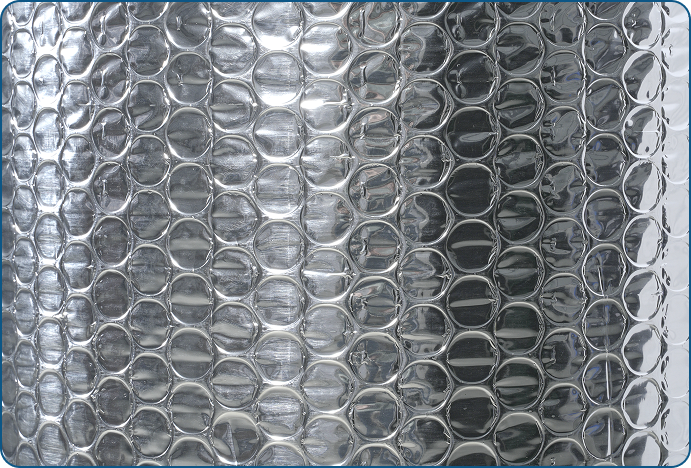

Carmika Supreme - Multi-Layer Reflective Insulation

Advanced Multi-Layer Reflective Insulation for Roofing, Walls, and Climate-Controlled Buildings.

Carmika Supreme by Shish SmartBuild is a next-generation multi-layer reflective insulation material engineered for India's demanding climates -- delivering exceptional thermal resistance, energy savings, and moisture control.

Its advanced construction features a rigid 5 mm polyethylene foam core, sandwiched between two 10 mm 3-layer air bubble sheets, with outer surfaces sealed by high-reflectivity polyester films.

This five-layer reinforced design acts as a superior thermal barrier against radiant heat, prevents moisture ingress, and offers outstanding compressive strength -- making it ideal for metal roofing systems, PEB structures, cold storage facilities, and climate-controlled industrial and commercial buildings.

At Shish SmartBuild, we don't just insulate -- we engineer smarter building protection.

Key Features and Custom Options

Five-Layer Multi-Core Structure

Combines foam strength, bubble resilience, and reflective barrier technology.

Superior Thermal Performance

Reflects up to 97% of solar radiant heat, reducing indoor temperature and energy loads.

Complete Vapor Barrier

Prevents moisture penetration and condensation buildup inside roof and wall systems.

Enhanced Impact and Compression Resistance

Rigid foam center resists mechanical damage, maintaining insulation integrity over time.

Energy Saving Design

Reduces HVAC loads, supporting lower cooling and heating energy consumption.

Lightweight and Easy to Install

Installer-friendly format with excellent flexibility and strength balance.

Eco-Friendly

VOC-free construction with recyclable materials.

Surface Options

Available with Pure Aluminum Foil.

APPLICATIONS

The industries we serve

Cold Storage Facilities

Insulation for temperature-controlled environments

Industrial Warehouses

Roof and wall insulation for energy saving

Logistics Hubs

High-value cargo and warehouse temperature management

Poultry/Dairy Sheds

Maintaining optimal livestock comfort and productivity

Villas and Luxury Residences

High-end roof insulation for climate protection

Agricultural Buildings

Grain storage insulation, greenhouse thermal control

Pre-Engineered Buildings (PEBs)

Roof and wall insulation for energy savings, condensation prevention, and thermal comfort.

Standard Technical Specifications

Parameter

Range / Options

Core Material

5 mm Rigid Polyethylene Foam

Air Bubble Layers

Dual 10 mm 3-Layer Bubble Sheets

Outer Surfaces

Aluminum Foil

Overall Thickness

~25 mm (+-5%)

Weight

~700 GSM (+-5%)

Reflectivity

>=97%

Thermal Resistance

~R4.5 to R5.5 (air-space dependent)

Water Vapor Transmission

<0.01 Perms

Fire Rating

Class 1/Class A (ASTM E84 Optional)

Roll Width

1.2 meters (standard); customizable up to 2 meters

Roll Length

12.19 meters

Surface Color

Reflective Silver (both sides)

Operating Temperature Range

-20 C to +80 C

Installation Guide

Recommended Tools:

Measuring tape

Heavy-duty scissors / utility knife

Staple gun / mechanical fasteners

Reflective foil tape

Installation Instructions:

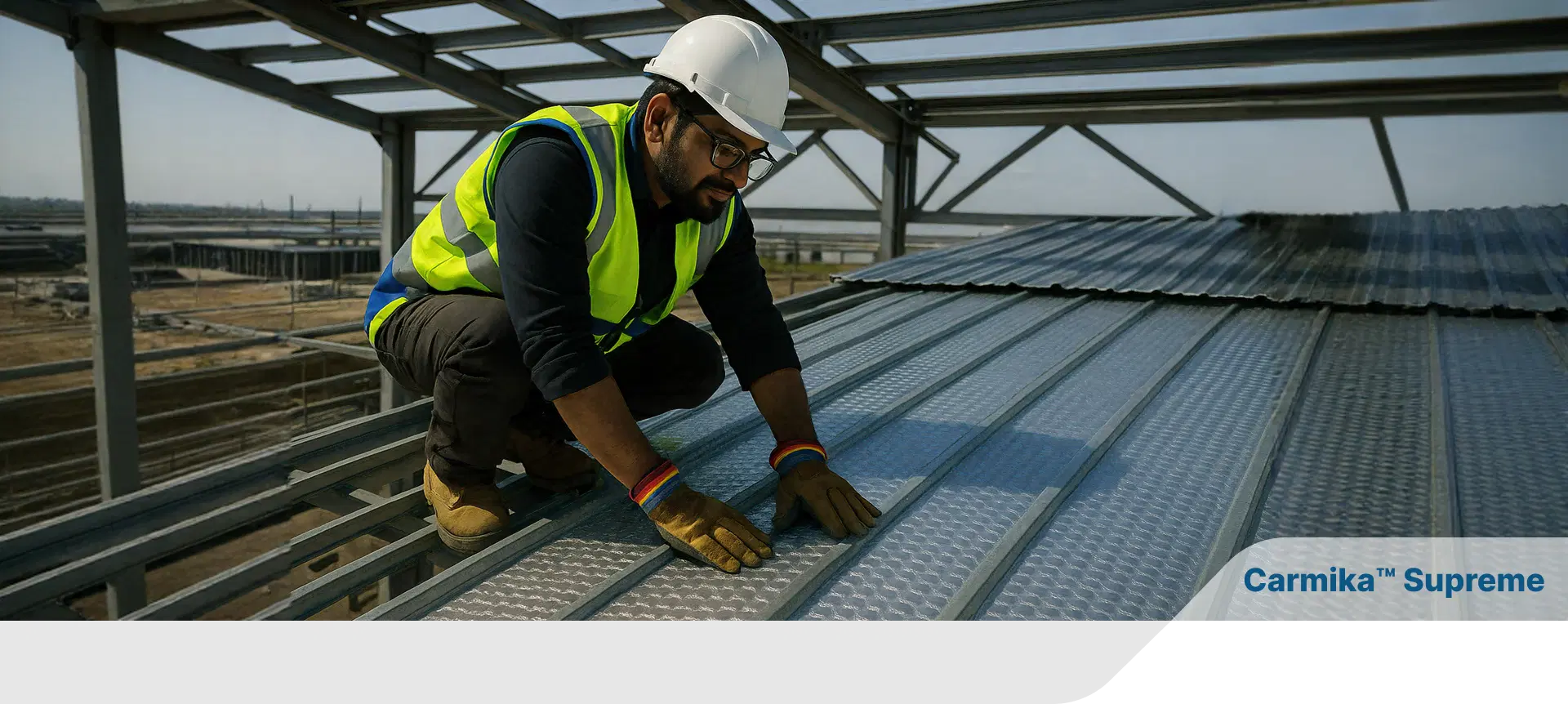

1. Lay over Purlins/Frames

Place Carmika Supreme Foam before fixing metal sheets.

2. Overlap and Seal

Overlap adjacent sheets by minimum 75 mm (3 inches). Seal all overlaps using reflective foil tape.

3. Secure and Finalize

Fix metal sheeting directly over Carmika Supreme Foam using roofing screws.

4. Optional Air Gap

Leaving an air gap improves insulation R-value where building design allows.
